Sunday, October 26, 2008
Arch 1202 - Coogee Oval - Week 11 - Building, Site, Landscape
A1 Layouts
A1 Layouts for Week 11 presentation, more detailed images of each component can be seen below.
A1 Layouts for Week 11 presentation, more detailed images of each component can be seen below.
Arch 1202 - Coogee Oval - Week 11 - Building, Site, Landscape
Site Analysis - Redux

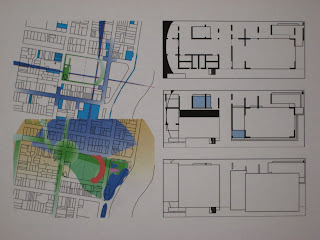

Site analysis distilled into two images, existing conditions and seasonal conditions.
The first displays Existing Conditions and includes:
Site Topography
Site Use
Main Transport routes
Heritage Buildings
The second covers Seasonal Conditions and includes:
Solar Gains
Water Mains and Junctions
Acid Sulphate Soil
Vegetation Clusters and Diversity
Site analysis distilled into two images, existing conditions and seasonal conditions.
The first displays Existing Conditions and includes:
Site Topography
Site Use
Main Transport routes
Heritage Buildings
The second covers Seasonal Conditions and includes:
Solar Gains
Water Mains and Junctions
Acid Sulphate Soil
Vegetation Clusters and Diversity
Arch 1202 - Coogee Oval - Week 11 - Building, Site, Landscape
Plans
Ground floor, first floor and roof plans.
Layout as developed from week 9 draft model.
Ground floor, first floor and roof plans.
Layout as developed from week 9 draft model.
Arch 1202 - Coogee Oval - Week 11 - Building, Site, Landscape

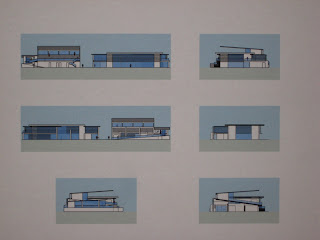

Elevations
Eastern and Western Elevation.
Eastern and Western Elevation.
Arch 1202 - Coogee Oval - Week 11 - Building, Site, Landscape
Elevations
Northern and Southern Elevation.
Northern and Southern Elevation.
Arch 1202 - Coogee Oval - Week 11 - Building, Site, Landscape
Sections
Sections viewing from the southern edge. The first is cut through the grandstand, change rooms and workspace and the second is cut through the large gymnasium and the general purpose/gymnasium kitchen area.
Sections viewing from the southern edge. The first is cut through the grandstand, change rooms and workspace and the second is cut through the large gymnasium and the general purpose/gymnasium kitchen area.
Arch 1202 - Coogee Oval - Week 10 - Building, Site, Landscape
General Site Views
Site view from North-east Corner (Gymnasium).
Site view from North-west Corner (Offices).

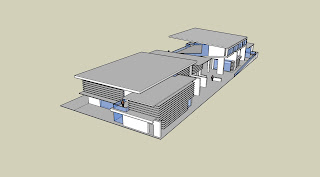

Open Top view.
Site view from Western Edge.
Site view from South-west Corner (Cafe and Grandstand).
Site view from South-east Corner (Grandstand and Gym).
Site view from North-east Corner (Gymnasium).
Site view from North-west Corner (Offices).
Open Top view.
Site view from Western Edge.
Site view from South-west Corner (Cafe and Grandstand).
Site view from South-east Corner (Grandstand and Gym).
Arch 1202 - Coogee Oval - Week 10 - Building, Site, Landscape
Grandstand Undercroft and Entry

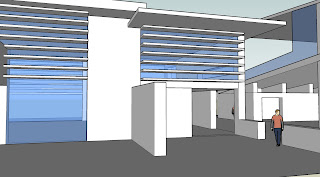

The Grandstand undercroft contains multiple spaces as well as a blade system influenced by the exterior of Eduardo Souto De Moura's Estádio Municipal de Braga in Portugal. This area holds the General Storeroom, Cafe Storeroom and the toilets and change rooms which are not accessible from this edge.
The Entrance space alongside the undercroft area offers more links and possible pathways into the site.
The Flexible Workshop is nestled in the undercroft of the grandstand and views out upon the street edge and north towards the park. This reciprocal relationship changes over time with users of the space being able to watch those interacting with the site on an equal footing but at night time they are lit up just like the gym and attract viewers just as a latern would moths. It also acts as an anchor for activity on the site and gives visitors to the site a point of reference.
The Grandstand undercroft contains multiple spaces as well as a blade system influenced by the exterior of Eduardo Souto De Moura's Estádio Municipal de Braga in Portugal. This area holds the General Storeroom, Cafe Storeroom and the toilets and change rooms which are not accessible from this edge.
The Entrance space alongside the undercroft area offers more links and possible pathways into the site.
The Flexible Workshop is nestled in the undercroft of the grandstand and views out upon the street edge and north towards the park. This reciprocal relationship changes over time with users of the space being able to watch those interacting with the site on an equal footing but at night time they are lit up just like the gym and attract viewers just as a latern would moths. It also acts as an anchor for activity on the site and gives visitors to the site a point of reference.
Arch 1202 - Coogee Oval - Week 10 - Building, Site, Landscape
External Views
The Gym and Oval Edge as viewed from the north-east corner of the site.
The Grandstand's Northern Staircase.
The Grandstand's Southern Ramp and Gym beyond.
Main Entrance, Small Gym space (below) and Audio Visual and Technical Store Rooms (above).
The Gym and Oval Edge as viewed from the north-east corner of the site.
The Grandstand's Northern Staircase.
The Grandstand's Southern Ramp and Gym beyond.
Main Entrance, Small Gym space (below) and Audio Visual and Technical Store Rooms (above).
Arch 1202 - Coogee Oval - Week 10 - Building, Site, Landscape
Gymnasium Views
Internal view of Gym space from first floor Offices viewing viewing east (towards Oval).
Walkway between Gym and Multipurpose Rooms/Community Kitchen viewing south (towards Grandstand).
Internal view of Gym space from first floor Offices viewing viewing east (towards Oval).
Walkway between Gym and Multipurpose Rooms/Community Kitchen viewing south (towards Grandstand).
Arch 1202 - Coogee Oval - Week 9 - Building, Site, Landscape
1:300 Model
The site as viewed from the north-east corner.
The site as viewed from the north-east corner.
Arch 1202 - Coogee Oval - Week 9 - Building, Site, Landscape
View from Oval - Plan view
A View from the Oval and Plan views with/without stadium roof and at night.
A View from the Oval and Plan views with/without stadium roof and at night.
Arch 1202 - Coogee Oval - Week 9 - Building, Site, Landscape
Grandstand and Cafe
The cafe sits on the southern edge of the site being permeable to both street edges and the oval.
Along the eastern edge of the grandstand, linking to the oval are the bathrooms, change rooms and general store room (for field equipment).
Under the grandstand is the workspace and is glazed along its northern and western sides.
The cafe sits on the southern edge of the site being permeable to both street edges and the oval.
Along the eastern edge of the grandstand, linking to the oval are the bathrooms, change rooms and general store room (for field equipment).
Under the grandstand is the workspace and is glazed along its northern and western sides.
Arch 1202 - Coogee Oval - Week 9 - Building, Site, Landscape
Entrance
The entrance to the site runs between the gym spaces and the grandstand.
There are opportunities to pass through facades to enter or exit buildings as one passes through to the oval.
The entrance to the site runs between the gym spaces and the grandstand.
There are opportunities to pass through facades to enter or exit buildings as one passes through to the oval.
Arch 1202 - Coogee Oval - Week 9 - Building, Site, Landscape
Gymnasium
The gymnasium is situated to the north of the site, adjacent to the park. The northern façade will be sheltered with trees from the park as well as sun shading.
The structure attached to its western edge contains the offices upstairs and the break room and general purpose rooms down stairs.
on the southern edge is the main entrance to the site and the small gym space with the AV and other general rooms above.
These spaces wrapped around the gym are able to view into it and beyond it into the oval.
The gymnasium is situated to the north of the site, adjacent to the park. The northern façade will be sheltered with trees from the park as well as sun shading.
The structure attached to its western edge contains the offices upstairs and the break room and general purpose rooms down stairs.
on the southern edge is the main entrance to the site and the small gym space with the AV and other general rooms above.
These spaces wrapped around the gym are able to view into it and beyond it into the oval.
Arch 1202 - Coogee Oval - Week 8 - Building, Site, Landscape
Architectural Influences
These three architects were my inspiration for detailing when looking at "The Edge" project for weeks 5-7. They provided me with further inspiration when redeveloping my design as they all approached grandstands and viewing areas in distinct and powerful ways, but they also are from a region which is heavily influenced by regional architecture and their buildings were more respondent (or resistant) to changes within the environment. As I wanted to look at an environmentally sustainable building(s) I drew upon some of the works by these architects.
I have not yet posted any images of these until I can find images which will not breach copyright.
They will be updated as I do.
Back to the Library then!!
These three architects were my inspiration for detailing when looking at "The Edge" project for weeks 5-7. They provided me with further inspiration when redeveloping my design as they all approached grandstands and viewing areas in distinct and powerful ways, but they also are from a region which is heavily influenced by regional architecture and their buildings were more respondent (or resistant) to changes within the environment. As I wanted to look at an environmentally sustainable building(s) I drew upon some of the works by these architects.
I have not yet posted any images of these until I can find images which will not breach copyright.
They will be updated as I do.
Back to the Library then!!
Arch 1202 - Coogee Oval - Week 8 - Building, Site, Landscape
Architectural Influences
Eduardo Souto De Moura
Portugese
Estádio Municipal de Braga (Braga Municipal Stadium)
Eduardo Souto De Moura
Portugese
Estádio Municipal de Braga (Braga Municipal Stadium)
Arch 1202 - Coogee Oval - Week 8 - Building, Site, Landscape
Architectural Influences
Alvaro Siza
Portuguese
Alvaro Siza
Portuguese
Arch 1202 - Coogee Oval - Week 8 - Building, Site, Landscape
Architectural influences
Juan Navarro Baldeweg
Spanish
Juan Navarro Baldeweg
Spanish
Arch 1202 - Coogee Oval - Week 8 - Building, Site, Landscape
Structures and Construction Coogee Oval Work

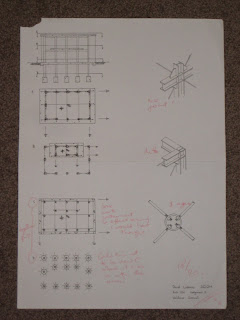

These images show the structural analysis of the earlier proposed scheme using structographics (created by Waldo) to express the movement of forces through the building. They also show the steel joints used to achieve this and a cross section of the gym space to indicate possible construction techniques.
edit: hi second year UNSW architects!
These images show the structural analysis of the earlier proposed scheme using structographics (created by Waldo) to express the movement of forces through the building. They also show the steel joints used to achieve this and a cross section of the gym space to indicate possible construction techniques.
edit: hi second year UNSW architects!
